High Air Pressure DTH Drill Bits DHD340 Dia 110-133mm For 4" DTH Hammer

Name: High Air Pressure DTH Drill Bits DHD340 Dia 110133mm For 4quot DTH Hammer
Brand: Miroc
Price: 1 USD

Wholesale High Air Pressure DTH Drill Bits DHD340 Dia 110-133mm For 4" DTH Hammer from china suppliers

Brand Name : Miroc

Model Number : DTH Button Bit

Place of Origin : China

MOQ : 10 Pieces

Price : negotiation

Supply Ability : 20000 pieces per month

Delivery Time : 25 days

Packaging Details : Carton Box or Wooden Box

Name : DHD340 Button bit

Material : Tungsten Carbide

Certification : ISO

Processing : Forging

Color : Based on customer

Contact Now

DHD340 DTH Drill Bits with Dia 110~133mm for 4" DTH hammer

Diameter: 110mm to 133mm.

Applicaiton field: blasting hole, geotheromal hole.

Face design: flat, convex, concave

Inserts design: spherical, ballistic, parabolic

Fetures: 1.Reliable quality, long service life, rare abnormal breakage during service life.

2.Good flushing effect to ensure high drilling rate
3.Strict quality warranty and compensation rules

Basic Information

DHD340 High Air Pressure DTH Bit Specification:

Diameter		Buttons and Size (mm)		Flushing hole	Weight	Part Number
mm	inch	Front	Gauge	Flushing hole	kg	Part Number
DHD340 Ballistic button/Concave face
115	4 1/2	4×14,2×14	8×14	2	10	4148301235
121	4 3/4	4×14,2×14	8×14	2	11	4148301236
127	5	4×14,3×14	8×14	2	12	4148301237
130	5 1/8	4×14,3×14	8×16	2	14	4148301238
DHD340 Spherical button/Concave face
115	4 1/2	4×14,2×14	8×14	2	10	4148301239
121	4 3/4	4×14,2×14	8×14	2	11	4148301240
127	5	4×14,3×14	8×14	2	12	4148301241
130	5 1/8	4×14,3×14	8×16	2	14	4148301242
133	5 1/4	4×14,3×14	8×16	2	15	4148301243
DHD340 Ballistic button/Convex face
110	4 3/8	4×14,2×14	8×14	2	9.3	4148301244
115	4 1/2	4×14,2×14	8×14	2	10	4148301245
121	4 3/4	4×14,2×14	8×14	2	11	4148301246
127	5	4×14,3×14	8×14	2	12	4148301247
130	5 1/8	4×14,3×14	8×16	2	14	4148301248
133	5 1/4	4×14,3×14	8×16	2	15	4148301249
DHD340 Spherical button/Flat face
110	4 3/8	6×14	8×14	2	9.3	4148301250
115	4 1/2	6×14	8×14	2	10	4148301251
121	4 3/4	6×14	8×14	2	11	4148301252
127	5	7×14	8×14	2	12	4148301253
130	5 1/8	7×14	8×16	2	14	4148301254
133	5 1/4	7×14	8×16	2	15	4148301255

We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

High Air Pressure DTH Drill Bits DHD340 Dia 110-133mm For 4" DTH Hammer

4" Mine Drilling Bits

Drill Bit	Bit Dia.		Air Holes No.	Gauge Buttons	Front Buttons	Weight (Kg)
Drill Bit	mm	inch	Air Holes No.	Gauge Buttons	Front Buttons	Weight (Kg)
ND45(DHD340A/COP44)	105	4	2	6*Φ14	5*Φ13	8.5
	110	4	2	7*Φ13	6*Φ13	8.8
	115	4	2	7*Φ14	6*Φ13	9.0
	120	4	2	8*Φ14	6*Φ14	9.8
	127	5	2	8*Φ14	7*Φ14	11.0
NSD4	105	4	2	6*Φ14	5*Φ13	9.0
	110	4	2	7*Φ13	6*Φ13	9.5
	115	4	2	7*Φ14	6*Φ13	9.8
	120	4	2	8*Φ14	6*Φ14	11.5
	127	5	2	8*Φ14	7*Φ14	12.3
NQL40	105	4	2	6*Φ14	5*Φ13	9.0
	110	4	2	7*Φ13	6*Φ13	9.2
	115	4	2	7*Φ14	6*Φ13	9.5
	120	4	2	8*Φ14	6*Φ14	10.3
	127	5	2	8*Φ14	7*Φ14	11.5
NM4	105	4	2	6*Φ14	5*Φ13	6.0
	110	4	2	7*Φ13	6*Φ13	6.2
	115	4	2	7*Φ14	6*Φ13	6.6
	120	4	2	8*Φ14	6*Φ14	7.0
	127	5	2	8*Φ14	7*Φ14	7.4

Applications

• Underground mining

• Down the hole rock drilling

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

DHD340 Hammer

Keywords

DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,

Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit

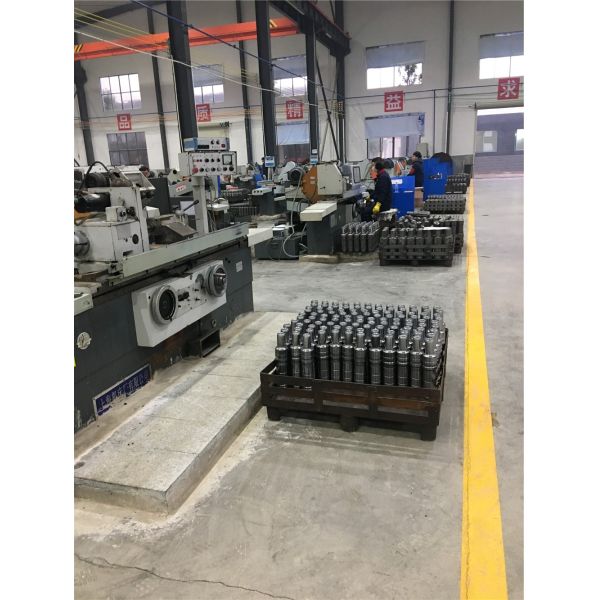

Factory
