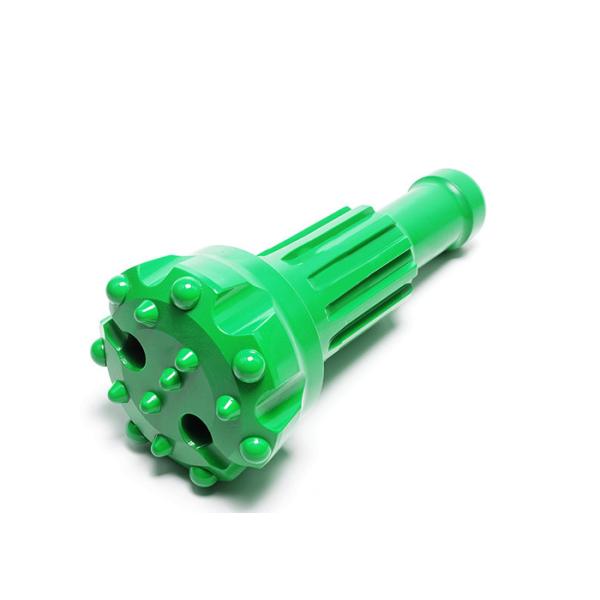

Big Hole Drilling Ballistic Or Spherocal Button Misson 40-146mm DTH Bit

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : DTH Button Bit

Place of Origin : China

MOQ : 10 Pieces

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000 pieces per month

Delivery Time : 25 days

Packaging Details : Carton Box or Wooden Box

Material : Carbon Steel

Shank Type : Misson 40

Button Type : Spherical

Face Type : Flat

Name : 4 inch DTH Drill bit

Contact Now

Big Hole Drilling Ballistic or Spherocal Button Misson 40-146mm DTH Bit

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

Basic Information

diameter range:105mm~127mm
DTH hammer: M40 hammer
Hole range:110mm~135mm

Specification of dth hammer button bits: Diameter: (mm)
1-2 inch low pressure DTH bits 64/70/76/80/82/90
3 inch high Air pressure DHT bits 85 / 90 / 95 / 100 / 105
4 inch high Air pressure DHT bits 105 / 110 / 115 / 120 / 127
5 inch high Air pressure DHT bits 133 / 140 / 146 / 152 / 165
6 inch high Air pressure DHT bits 152 / 165 / 178 / 190 / 203
8 inch high Air pressure DHT bits 195 / 203 / 216 / 254 / 305
10, 12 inch high Air pressure DTH bits 254/305/318/330/356/381

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

M40 High Air Pressure DTH Button Bit Specification:

Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge kg
Ballistic button/Concave face
115 4 1/2 4×14,2×14 8×14 2 6.8 4148301289
121 4 3/4 4×14,2×14 8×14 2 7.4 4148301290
127 5 4×14,3×14 8×14 2 7.6 4148301291
130 5 1/8 4×14,3×14 8×16 2 8 4148301292
Spherical button/Concave face
115 4 1/2 4×14,2×14 8×14 2 6.8 4148301293
121 4 3/4 4×14,2×14 8×14 2 7.4 4148301294
127 5 4×14,3×14 8×14 2 7.6 4148301295
130 5 1/8 4×14,3×14 8×16 2 8 4148301296
133 5 1/4 4×14,4×14 8×16 2 8.3 4148301297
Ballistic button/Convex face
110 4 3/8 4×14,2×14 8×14 2 6.4 4148301298
115 4 1/2 4×14,2×14 8×14 2 6.8 4148301299
121 4 3/4 4×14,2×14 8×14 2 7.4 4148301300
127 5 4×14,3×14 8×14 2 7.6 4148301301
130 5 1/8 4×14,3×14 8×16 2 8 4148301302
133 5 1/4 4×14,4×14 8×16 2 8.3 4148301303
Spherical button/Flat face
110 4 3/8 6×14 8×14 2 6.4 4148301304
115 4 1/2 6×14 8×14 2 6.8 4148301305
121 4 3/4 6×14 8×14 2 7.4 4148301306
127 5 7×14 8×14 2 7.6 4148301307
130 5 1/8 7×14 8×16 2 8 4148301308
133 5 1/4 7×14 8×16 2 8.3 4148301309


We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

Pictures
Big Hole Drilling Ballistic Or Spherocal Button Misson 40-146mm DTH BitBig Hole Drilling Ballistic Or Spherocal Button Misson 40-146mm DTH Bit
