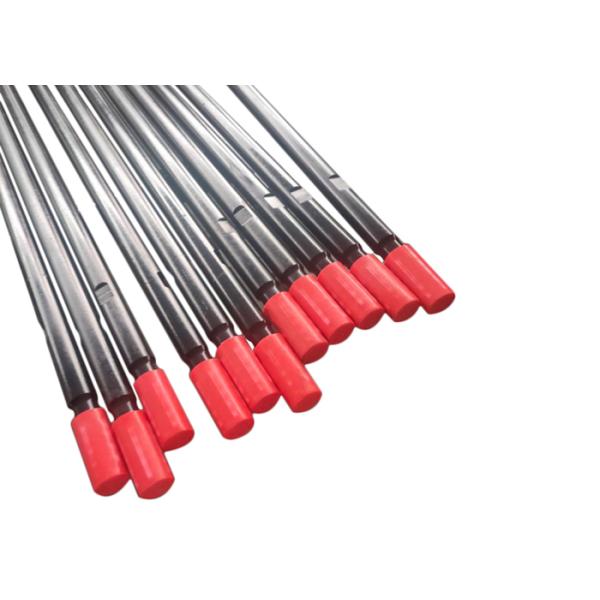

T38 3050mm Threaded Top Hammer Drilling Rod

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : T38 3050mm

Certification : ISO

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden Box

Other Names : T Threaded Drill Rod, Drilling Rod, Rock Drill Rods,

Material : Alloy Steel Bar

Rod Shape : Round (Plain)

Machine Type : Drilling Tools

Processing Type : Forging

Technology : Heat Treatment

Application : Hard Rock Drilling, Mining, Quarrying, Stoning, Construction

Colour : Black

Contact Now

T38 3050mm Threaded Top Hammer Drilling Rod

Extension Steel Rods
With the longer steel tending to be larger in diameter. Conventional extension steel is characterized by a duplicate thread on each end of the steel. Hexagonal and round cross sections are available. Round cross sections are more prevalent.

Male/Female (M/F) steel
An alternative to couplings is to include the female part of the threaded connection as an integral part of the drill steel.Like most developments, it has its advantages and disadvantages. Male/Female drill steel pro- vides more rigid connections and is easier to uncouple and handle. The service life also tends to be better than with separate couplings. This is fortunate because the coupling end cannot be re-placed.The advantages of drilling with M/F steel include: easy handling, quicker uncoupling, tighter con-nections and the potential to drill straighter holes.

Specification of thread drill rod

Part Number Product Code and Brief Description

Length

(mm)

Length

(ft/inch)

Diameter

(mm)

Diameter

(inch)

Weight

(kg)
4148300796

GR32-T38-1830,

T38 Guide Speed Rod,

T38-Round 46-T38,

Flushing Hole 17 mm

 1830 6 46 1 4/5 23.5
4148300797

GR32-T38-3050,

T38 Guide Speed Rod,

T38-Round 46-T38,

Flushing Hole 17 mm

 3050 10 46 1 4/5 37.2
4148300798

GR32-T38-3660,

T38 Guide Speed Rod,

T38-Round 46-T38,

Flushing Hole 17 mm

 3660 12 46 1 4/5 44.0
4148300799

GR32-T38-4270,

T38 Guide Speed Rod,

T38-Round 46-T38,

Flushing Hole 17 mm

 4270 14 46 1 4/5 50.9
4148300800

GR32-T38-4880,

T38 Guide Speed Rod,

T38-Round 46-T38,

Flushing Hole 17 mm

 4880 16 46 1 4/5 57.7
4148300801

GR32-T38-5530,

T38 Guide Speed Rod,

T38-Round 46-T38,

Flushing Hole 17 mm

 5530 18 1/7 46 1 4/5 65.0
4148300802

GR32-T38-6095,

T38 Guide Speed Rod,

T38-Round 46-T38,

Flushing Hole 17 mm

 6095 20 46 1 4/5

71.3
